Working with files (images and documents)

Managing files

Files are typically managed within the Files section of the CMS. This section shows a library of files available to use on your website. This includes both images and documents such as PDF files, and can also include javascript files.

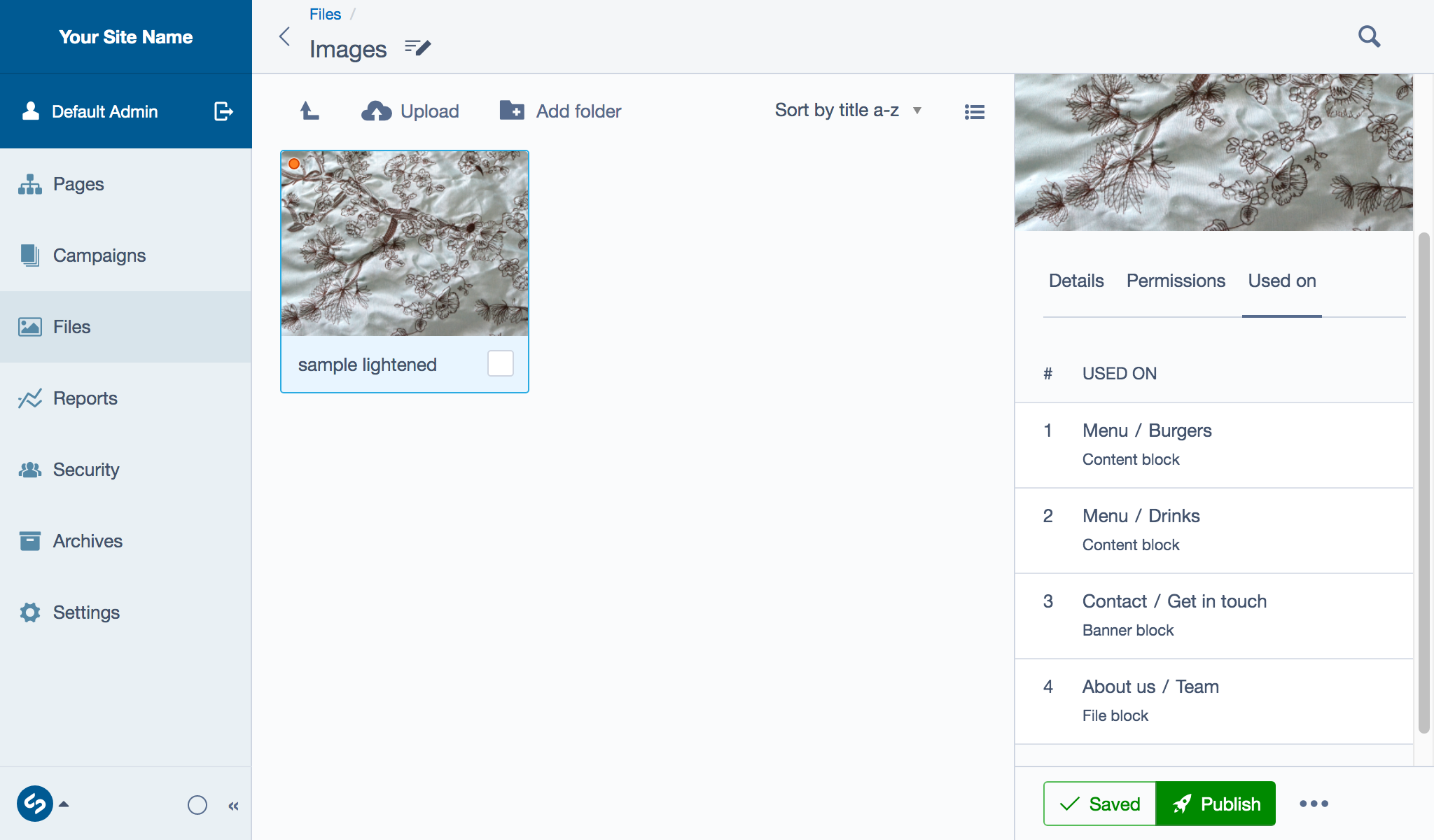

Files can be displayed or linked to from multiple places. This means that by updating a file's details, all of the pages which use the file will receive those updates (both the file and page would need to be published for these changes to be seen on the live version).

You can either upload files within the Files section or directly from pages through the HTML editor. The Files section supports a range of different file types which are typical for use on the web including images, videos, and documents. See Web content best practices for additional tips on how to prepare files for use on the web.

By default, uploaded files are placed in the "Uploads" directory. If you place an image in a page, and later move or rename that image the CMS will automatically keep track of those changes, so your webpage will remain unchanged—you don't even have to republish the page.

Uploading images

Navigate to the Files section in the CMS menu. You should see a grid or list of files (and folders containing files) that have already been uploaded to the CMS, otherwise you probably have an empty files area.

Before you upload your images or files you may wish to create a new folder, or navigate to an existing folder to upload a file to keep your files orderly. You can navigate up and down the folder structure by clicking on folders or clicking the back arrow.

Click the button Upload to choose your file(s) from your computer to upload, or alternatively you can drag and drop your file(s) into the main Files library area.

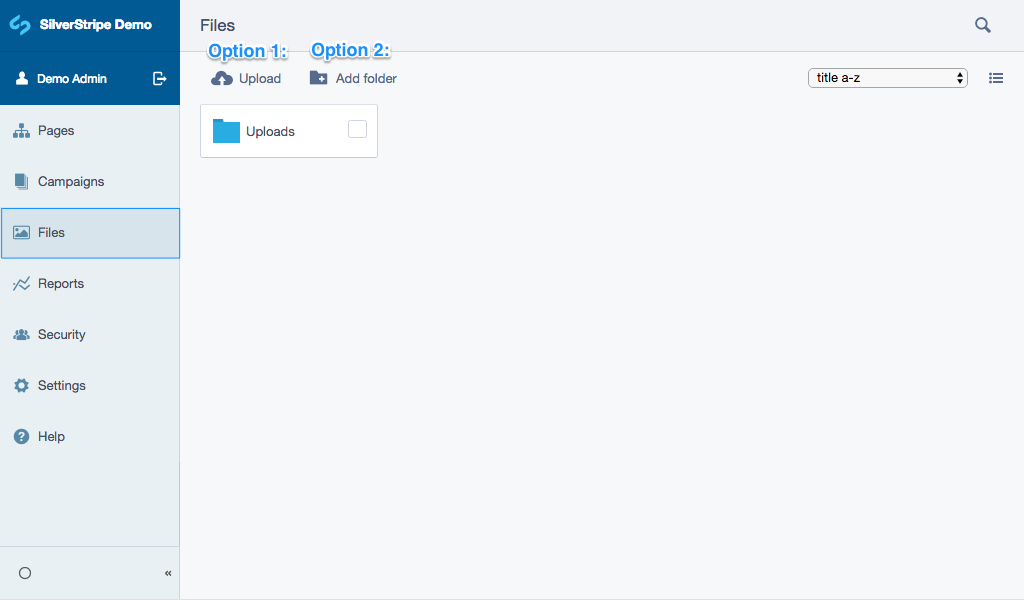

Files section

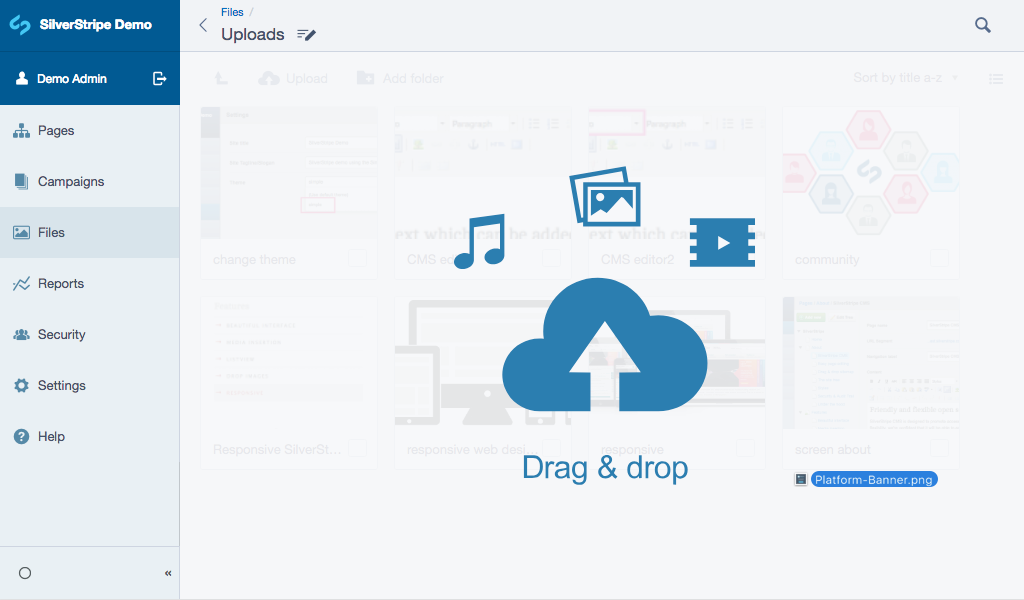

Drag and drop file

You should now see the files you uploaded within your chosen folder.

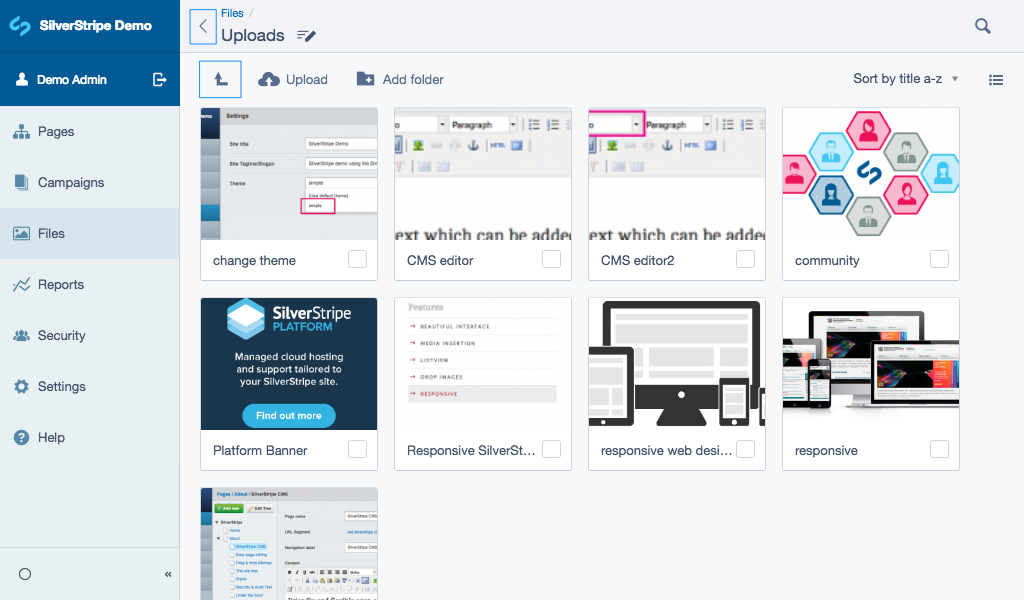

Uploaded files

This same process can be used for filetypes other than images, see Linking Documents to learn more.

Uploading images from a page

Pages that contain a HTML editor allow you to place files into the content area, some pages don't have a HTML editor area by default and might require a different Page type or for a Content Block to be added.

  1. Navigate to your page within the Pages section.
  2. In the HTML editor click on the button Insert from Files which is shown as an image icon.
  3. The Files area will open above the Navigation toolbar.
  4. Navigate to the folder you would like to add your file(s).
  5. Either drag files from your computer/device or click the button Upload to add your file(s).
  6. Select the files you would like to add to your content, they will appear on the right side of your file library so that you can edit its details.
  7. When you have finished editing click the button Insert. This will place the image in your text where your cursor was in the editing section.

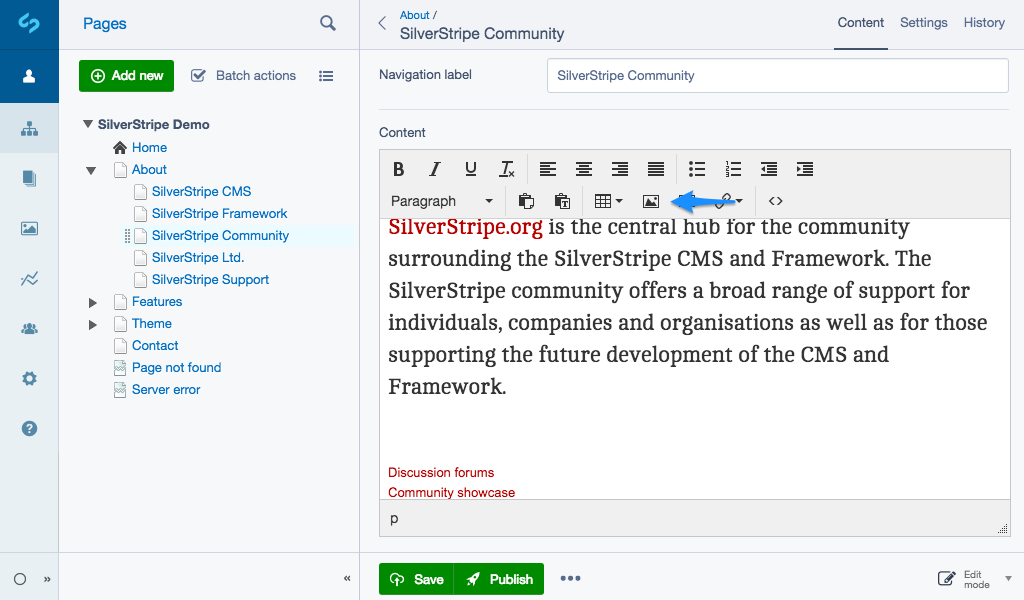

Insert images

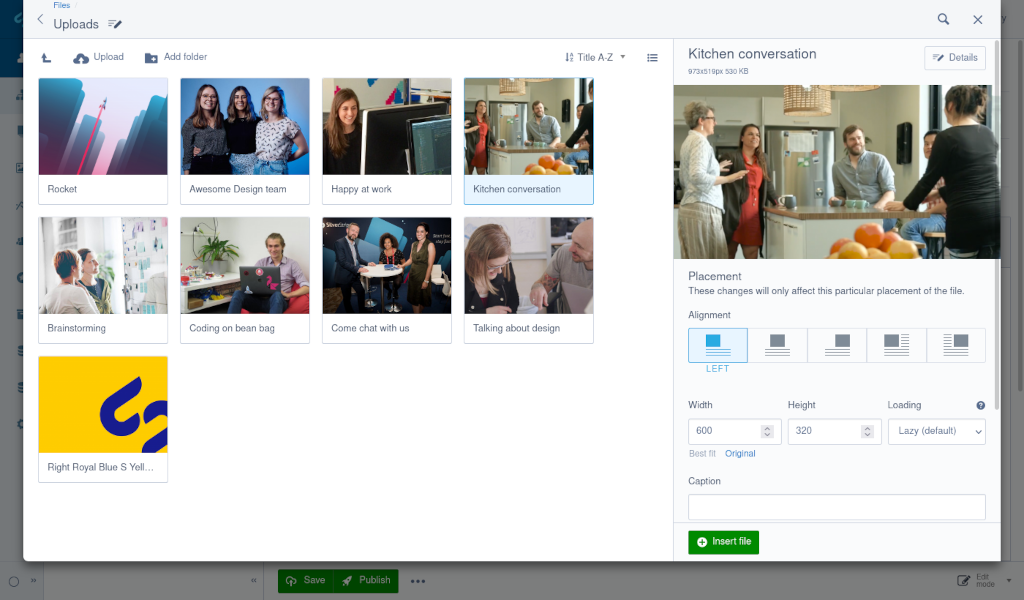

Images from the CMS

Editing files

Basic functionality and options for files:

  • Alternative text is shown if the image cannot be loaded or displayed (for example, on text-only web browsers or screen readers).
  • The Title text field shows additional information about the image when the mouse rolls over the image. See, Web Content Best Practices to learn more.
  • The Caption field can be used to enter text descriptions of an image.
  • The location of the file within the Files library.
  • Alignment and text wrapping properties of the image.
  • Dimensions of the image to be displayed in the site.

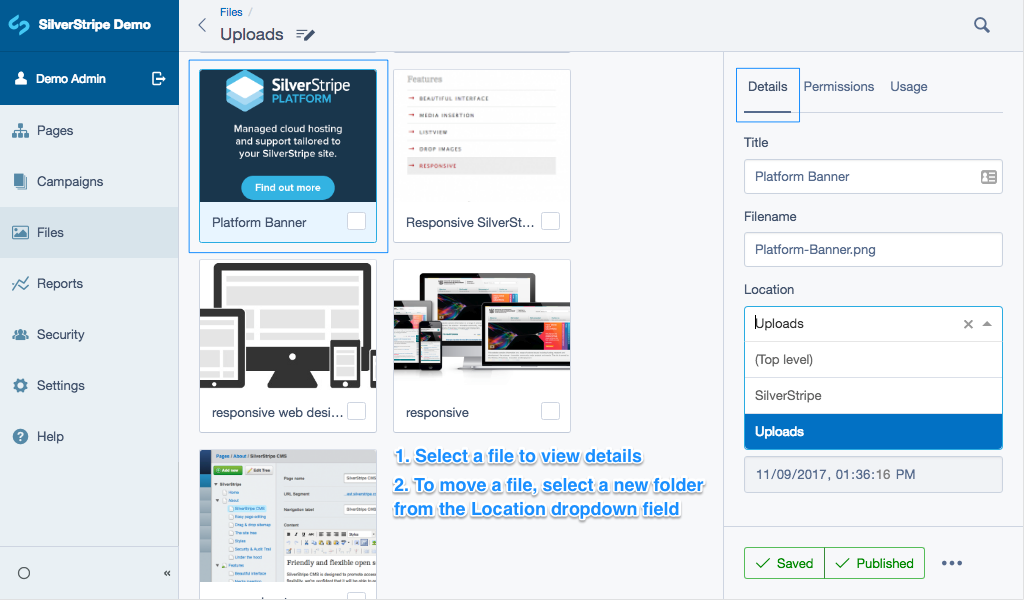

Moving files

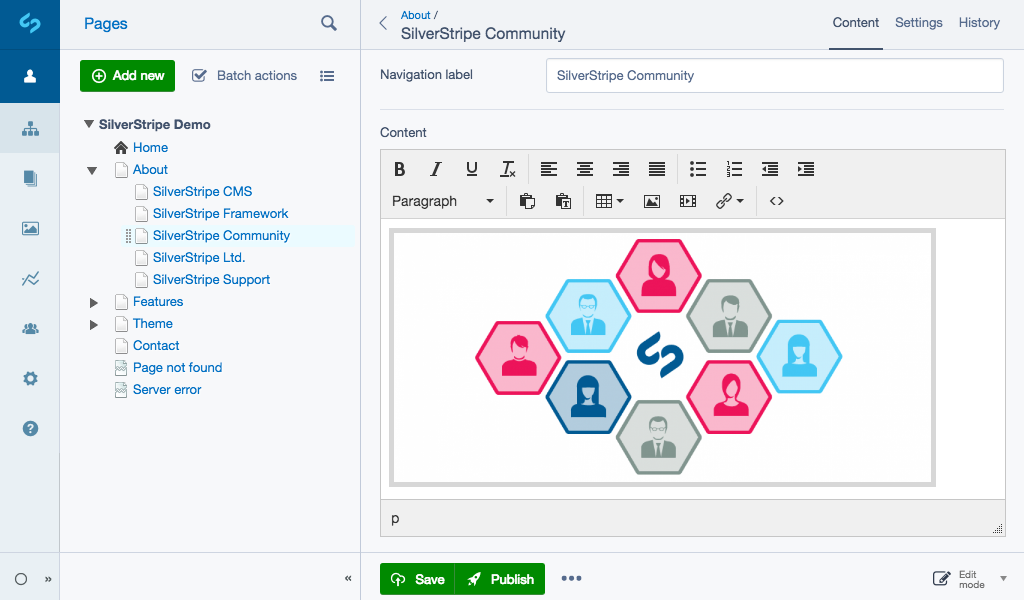

Inserted image

Creating, deleting folders

Folders can be used to organise images and documents, and if a new folder is created, it is added to the view you are currently in. To create a new folder click the button Add folder (also shown as folder icon). The new folder will appear on the right side of the library and will require a Folder name before you can save it and for it to appear in the File library.

Add folder

Extra care should be taken when deleting a folder as files contained within it can be deleted at the same time. There are two ways to delete a folder:

  • Select the folder checkbox field and click the button Delete shown as a trash icon.
  • Select a folder so its details shows in the edit panel (right of the file library), select Delete from the file options (accessible through the ellipsis icon).

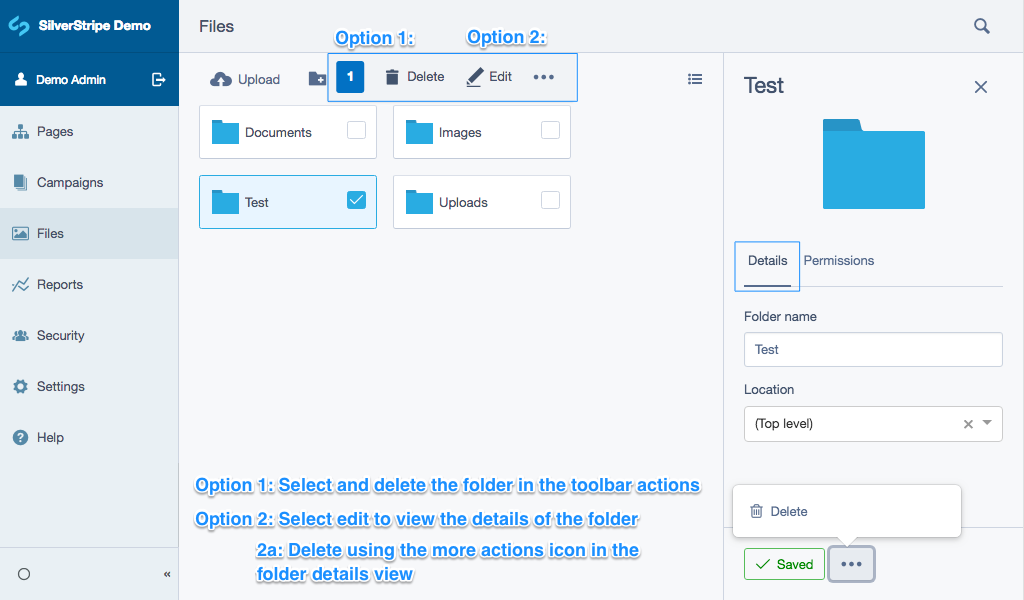

Delete folder

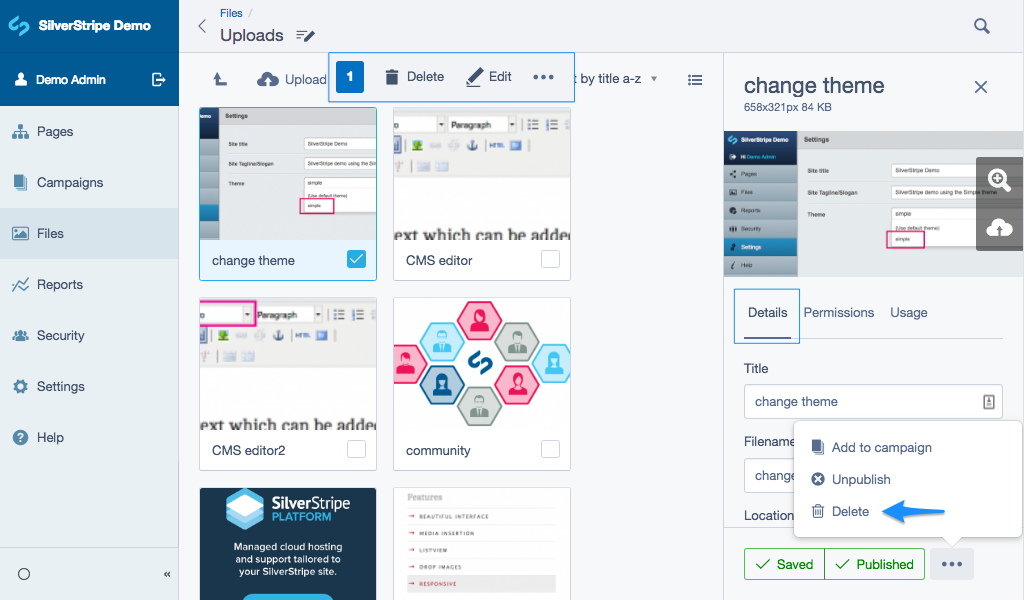

Editing and deleting files

Searching for images and documents

To search for an image, click the button Search (shown as a search icon). Type the whole or partial search term to locate file(s). Click the button Advanced (or shown as an downward arrow) if you wish to filter by File type, Last changed or Limit to current folder and its sub-folders checkbox field.

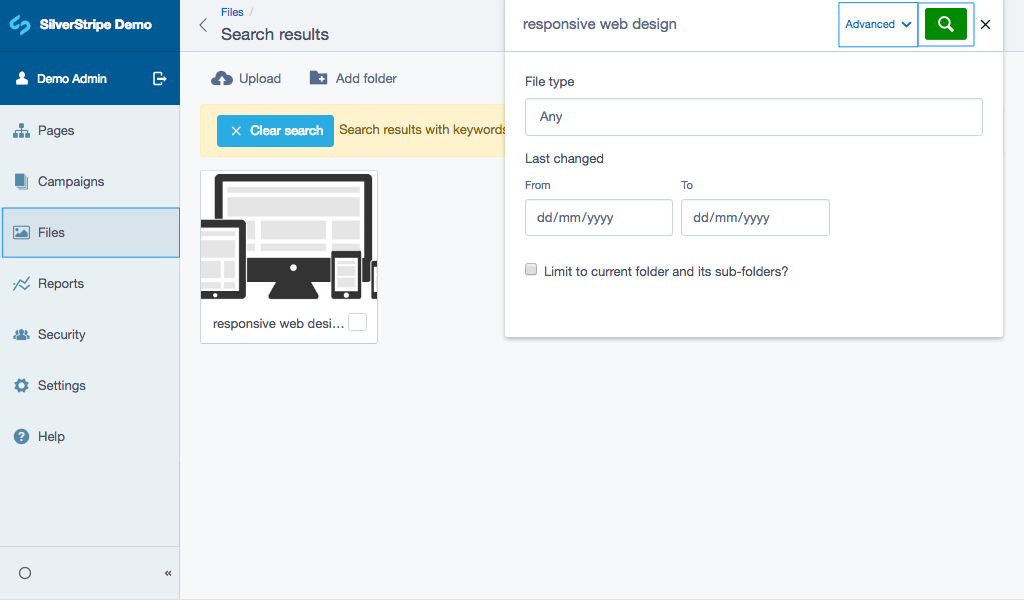

Searching for files
